Technical design

CAD/Technical Drawings

A selection of technical flats across menswear, streetwear and activewear. Every style I design starts as an accurate, factory-ready flat, drawn to proportion with the construction, seams, trims and details a factory needs to sample it right the first time.

CategoryTechnical design

IncludesFront and back flats, colourway options, trim details

Tech packsFull tech packs, including spec sheets, construction details and BOMs, are available to view on a discovery call.

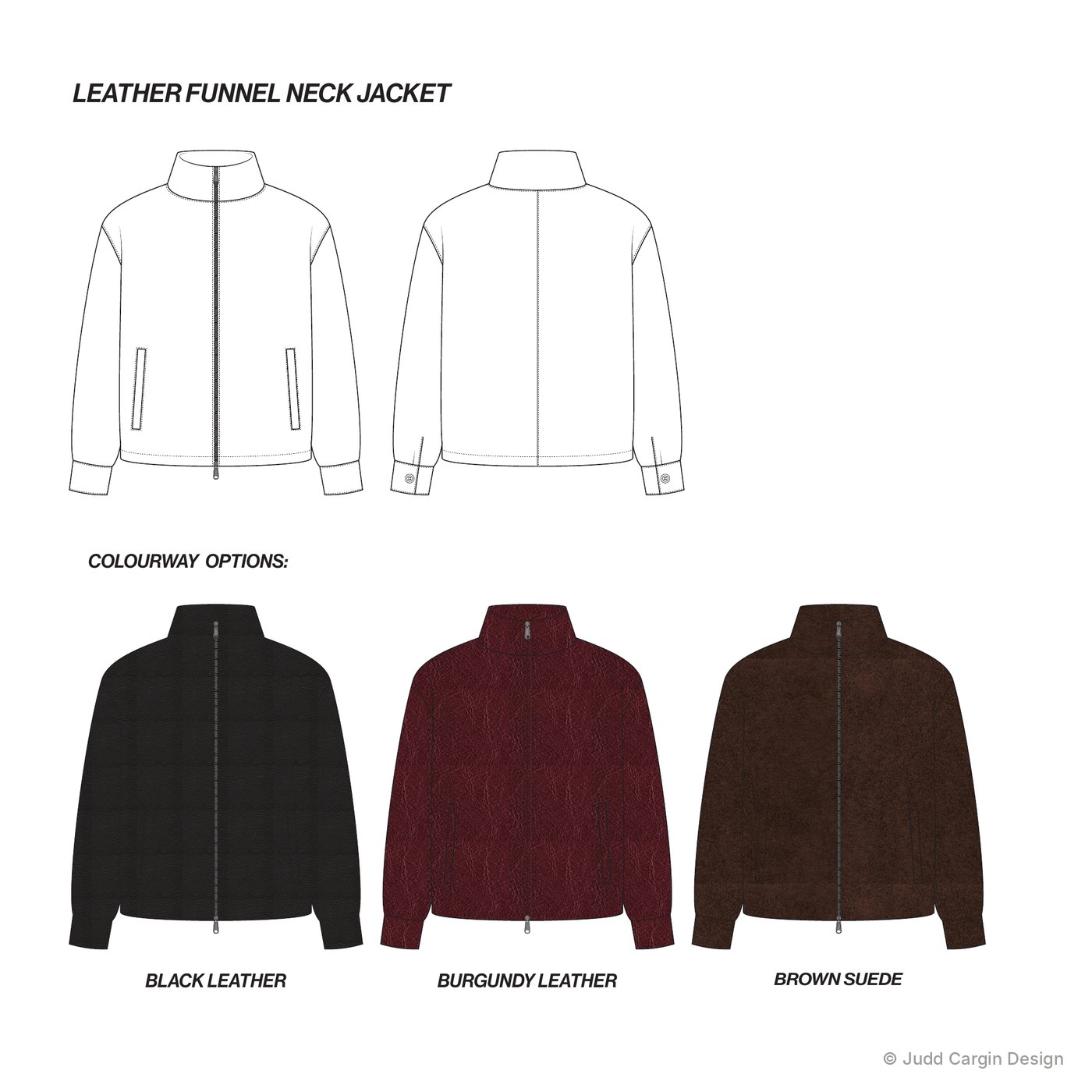

Leather Funnel Neck Jacket technical flats, front and back, with black leather, burgundy leather and brown suede colourways — Leather Funnel Neck JacketOuterwear

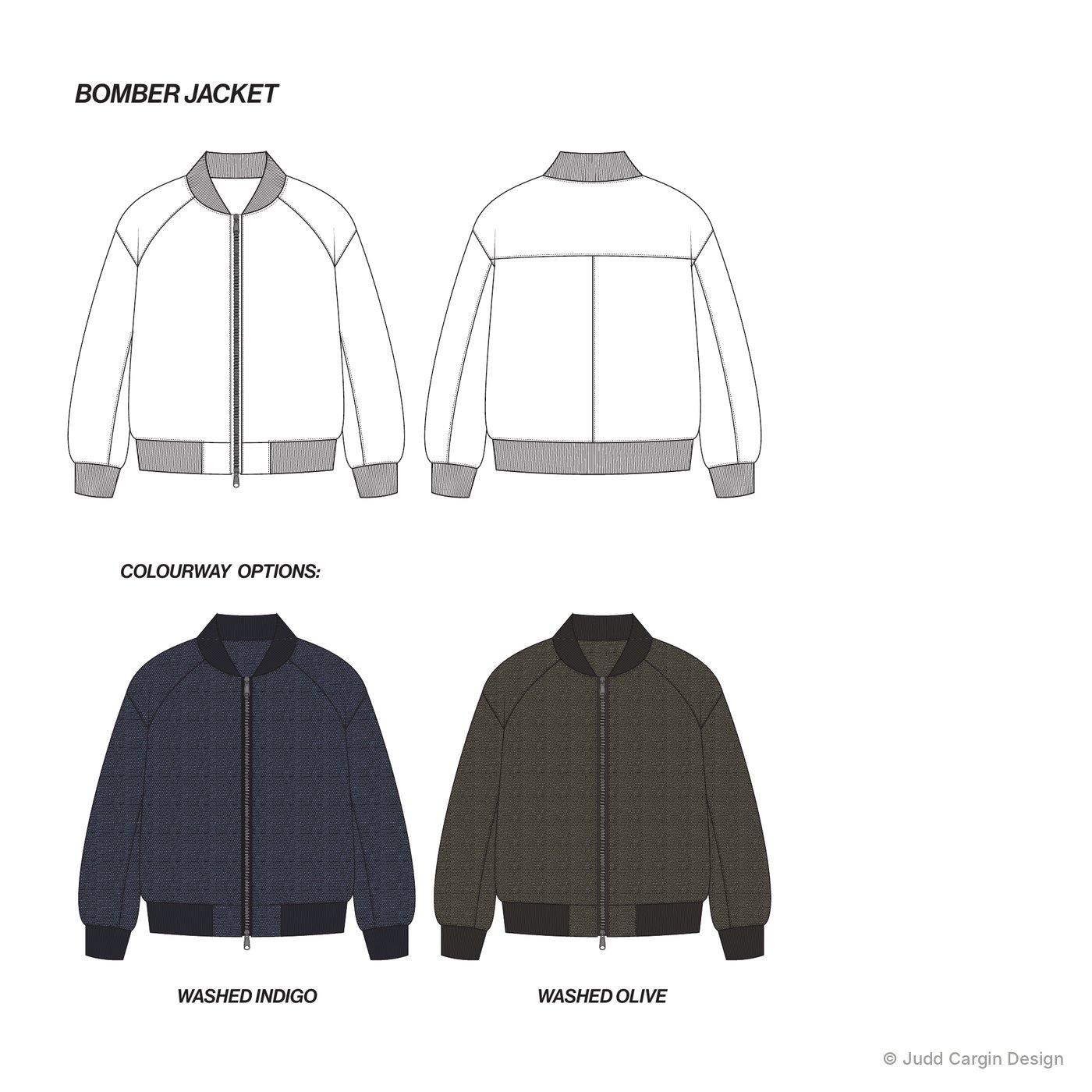

Bomber Jacket technical flats, front and back, with washed indigo and washed olive colourways — Bomber JacketOuterwear

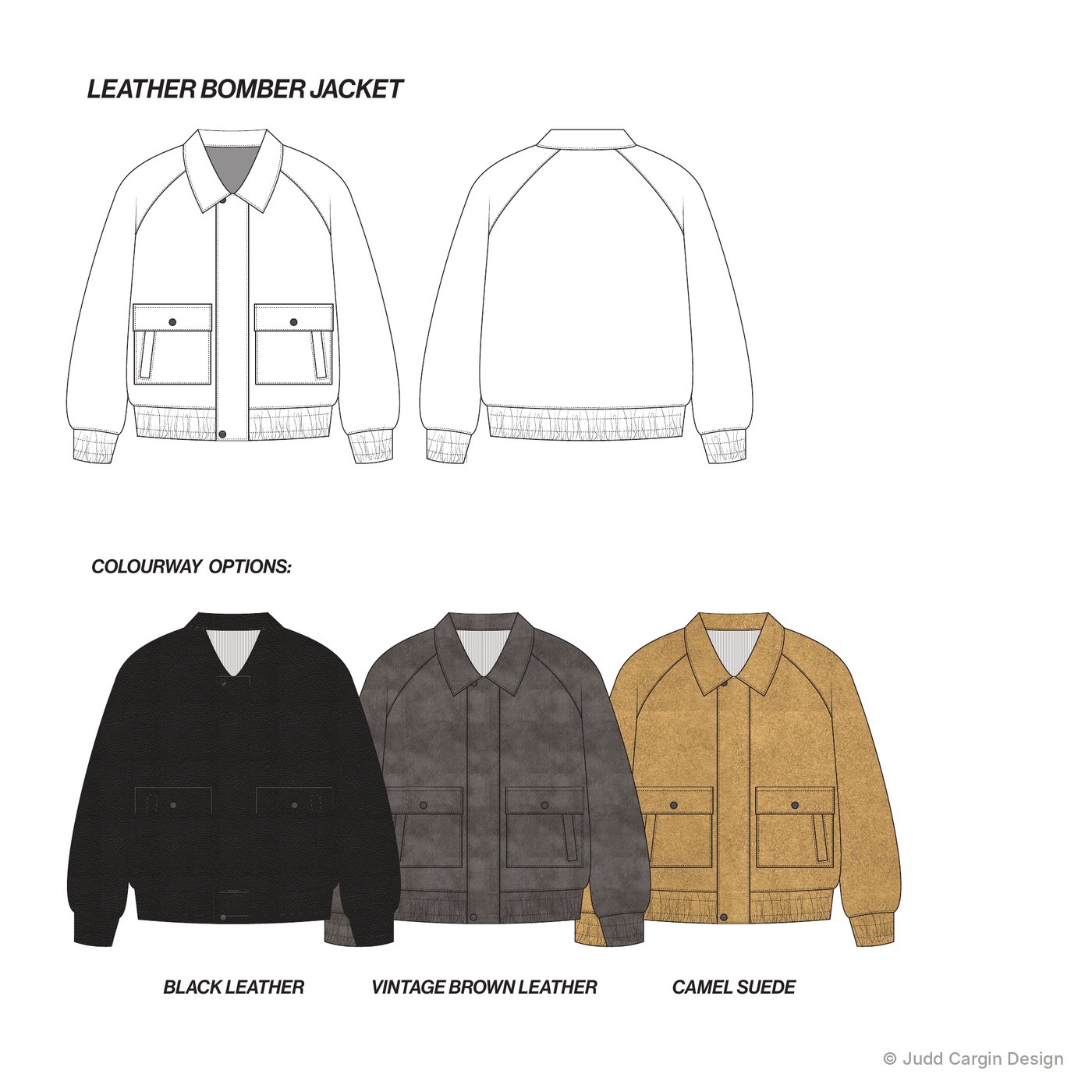

Leather Bomber Jacket technical flats, front and back, with black leather, vintage brown leather and camel suede colourways — Leather Bomber JacketOuterwear

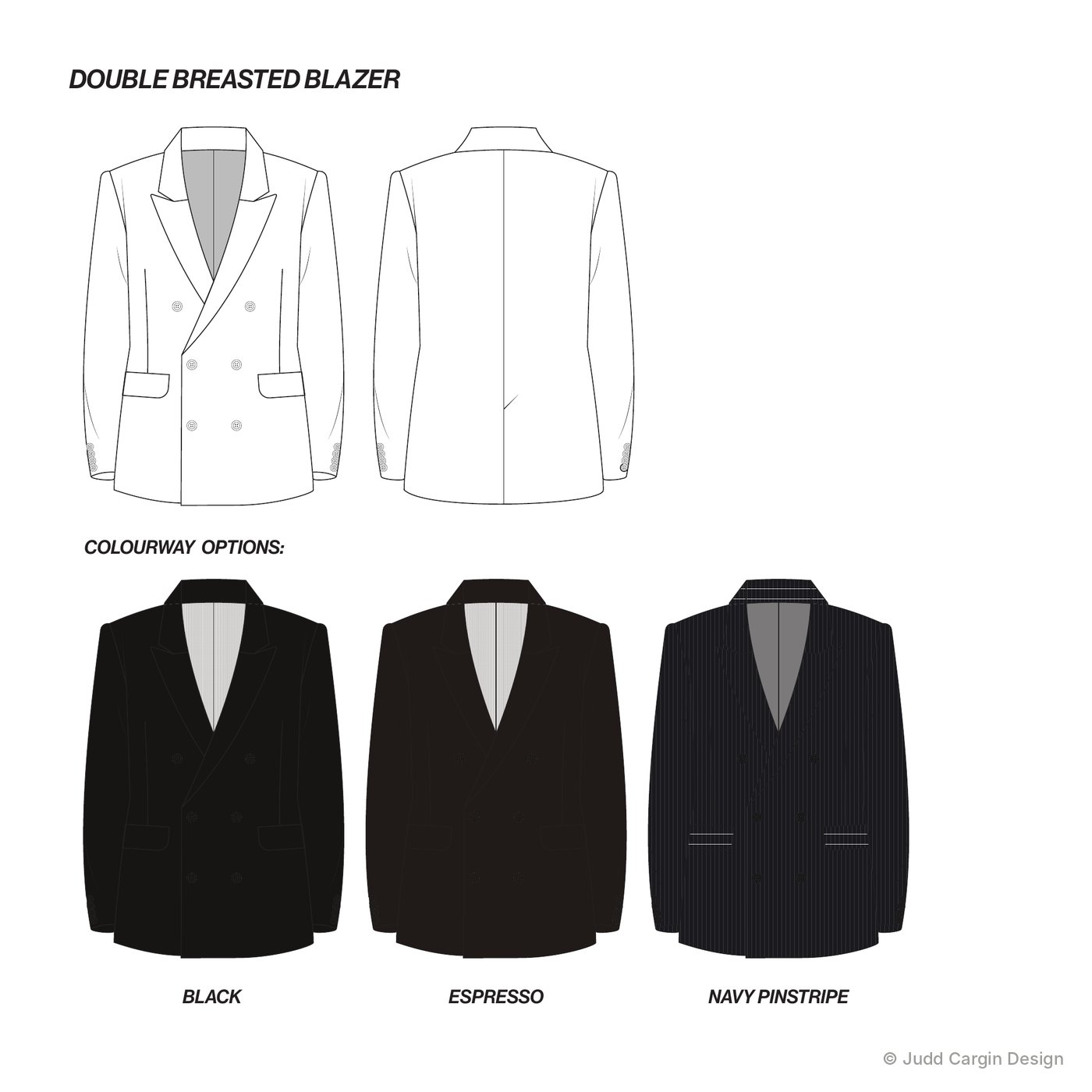

Double-Breasted Blazer technical flats, front and back, with black, espresso and navy pinstripe colourways — Double-Breasted BlazerOuterwear

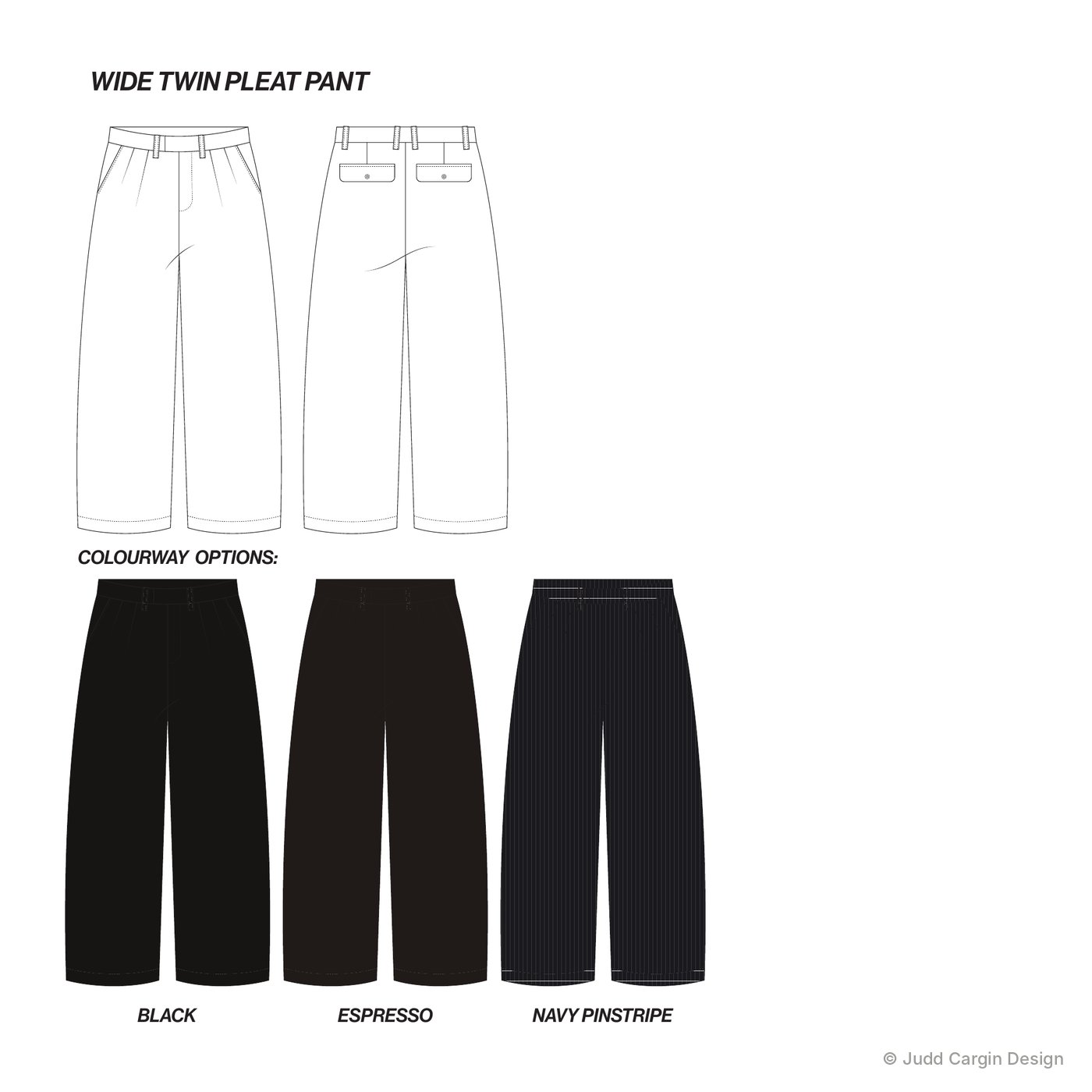

Wide Twin Pleat Pant technical flats, front and back, with black, espresso and navy pinstripe colourways — Wide Twin Pleat PantPants

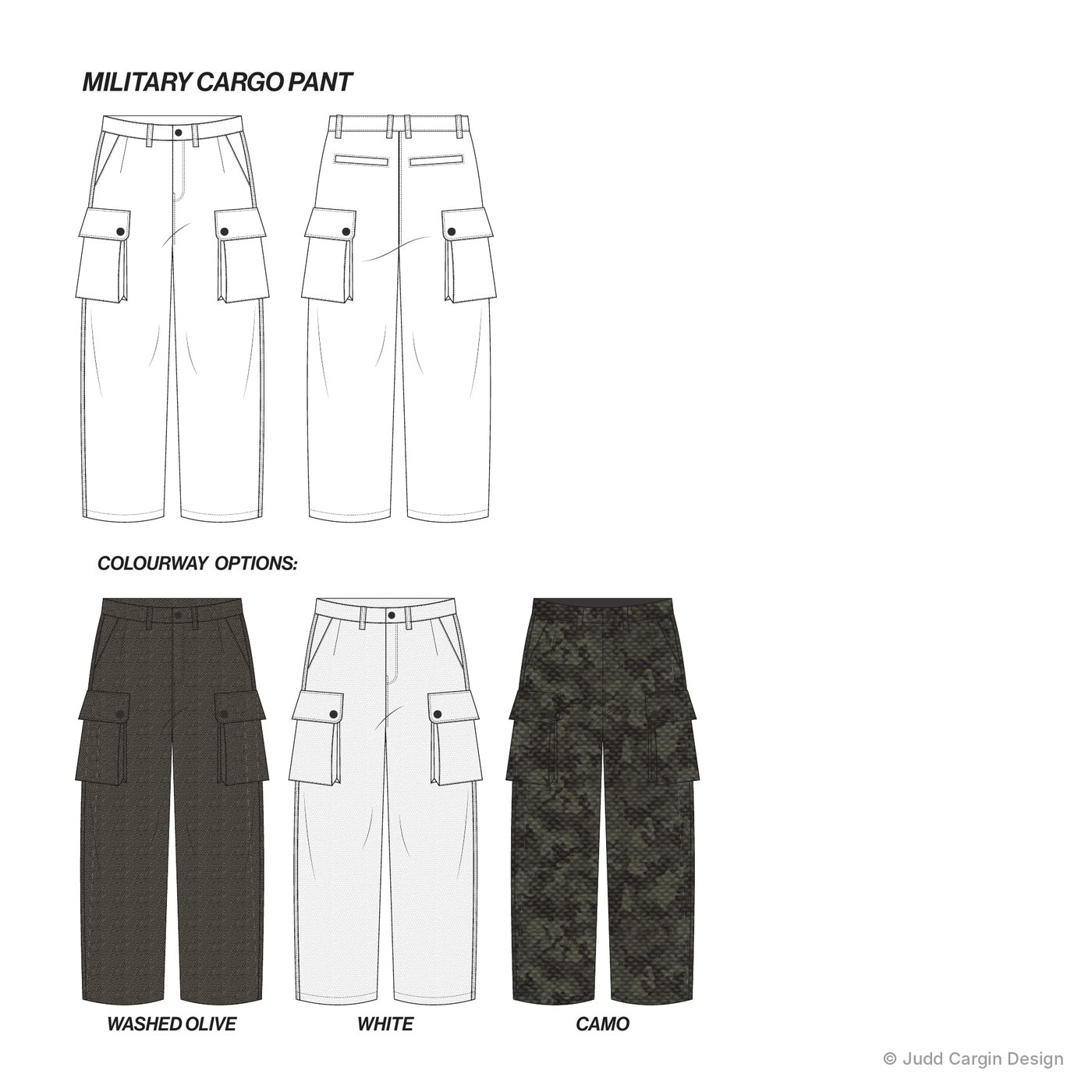

Military Cargo Pant technical flats, front and back, with washed olive, white and camo colourways — Military Cargo PantPants

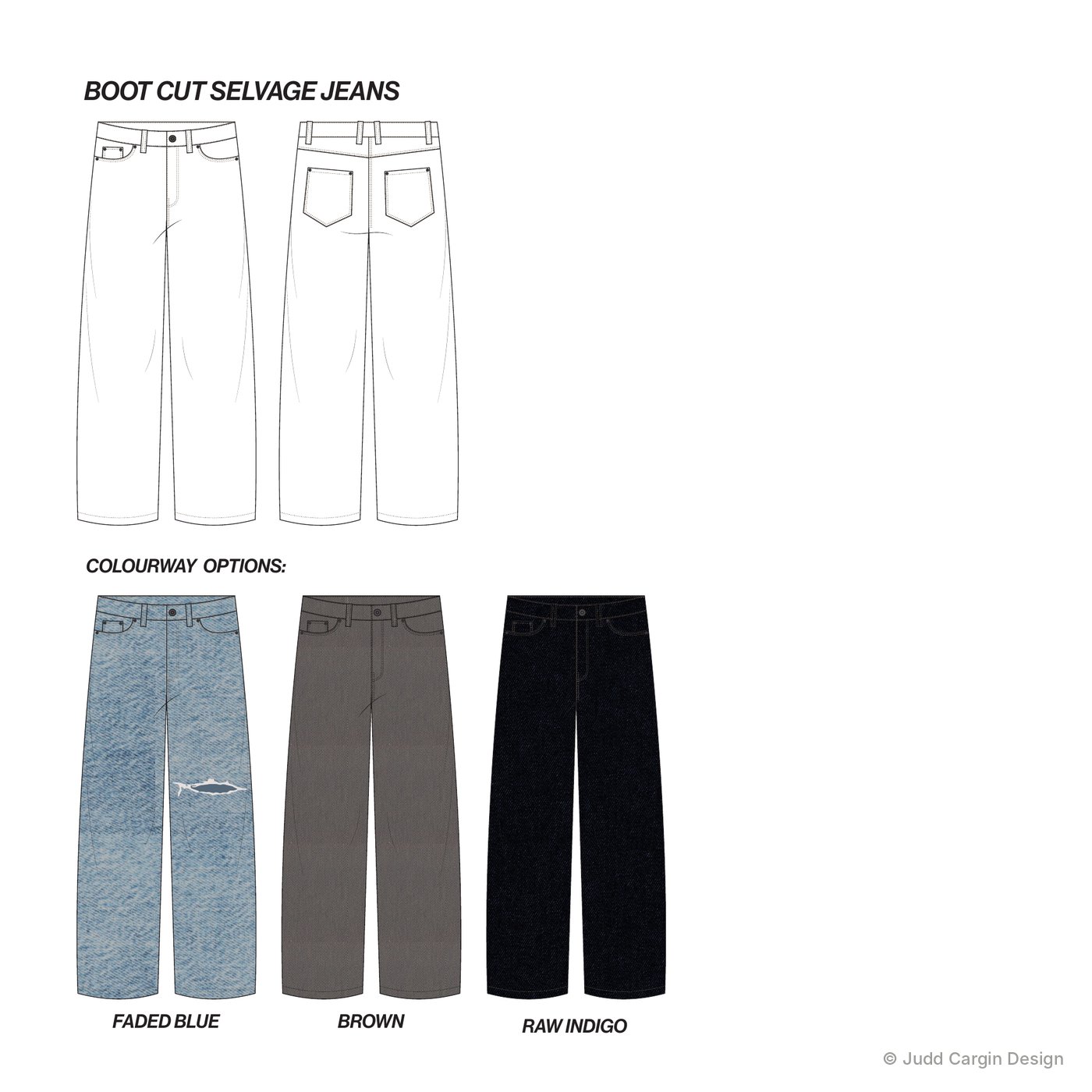

Boot Cut Selvage Jeans technical flats, front and back, with faded blue, brown and raw indigo colourways — Boot Cut Selvage JeansDenim

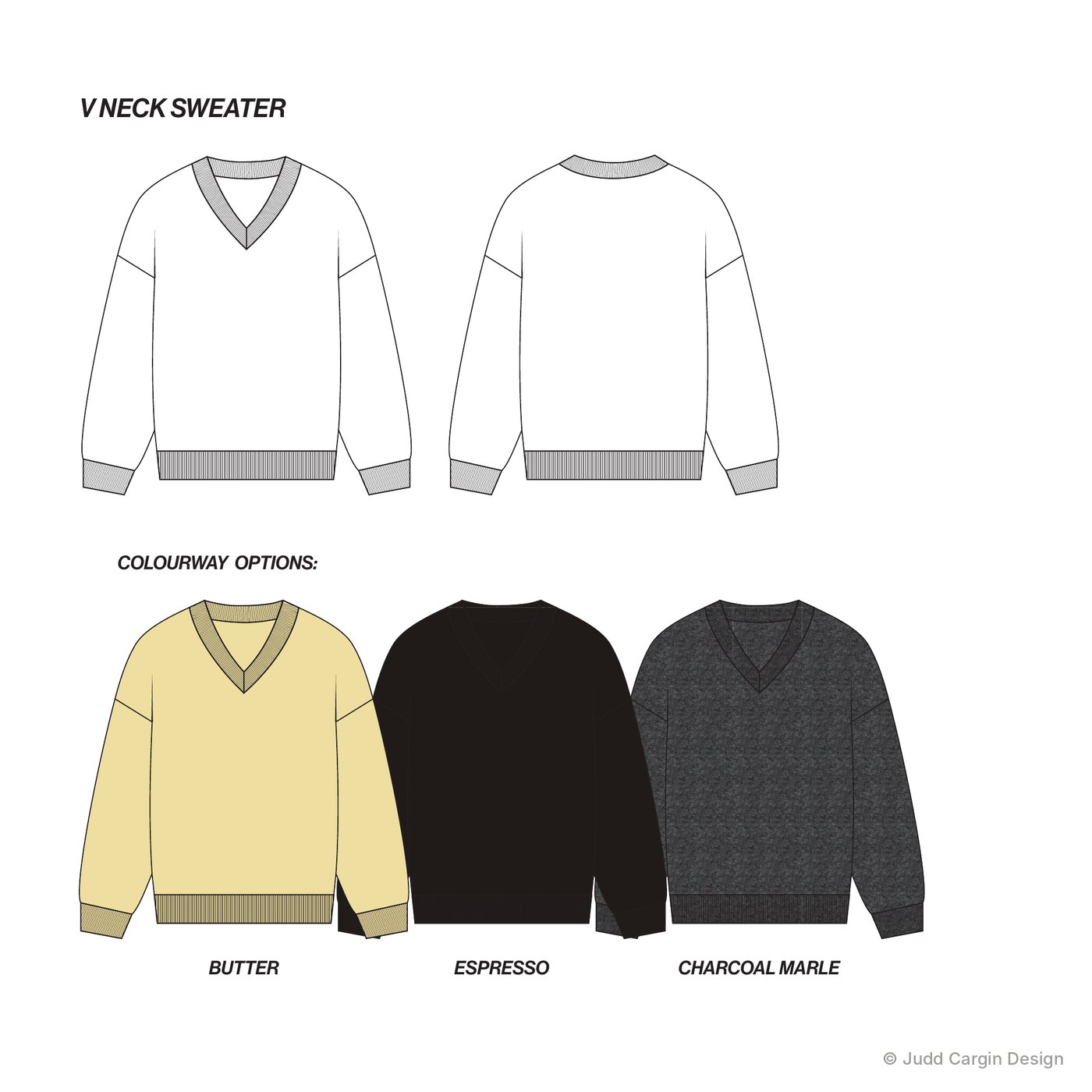

V-Neck Sweater technical flats, front and back, with butter, espresso and charcoal marle colourways — V-Neck SweaterKnitwear

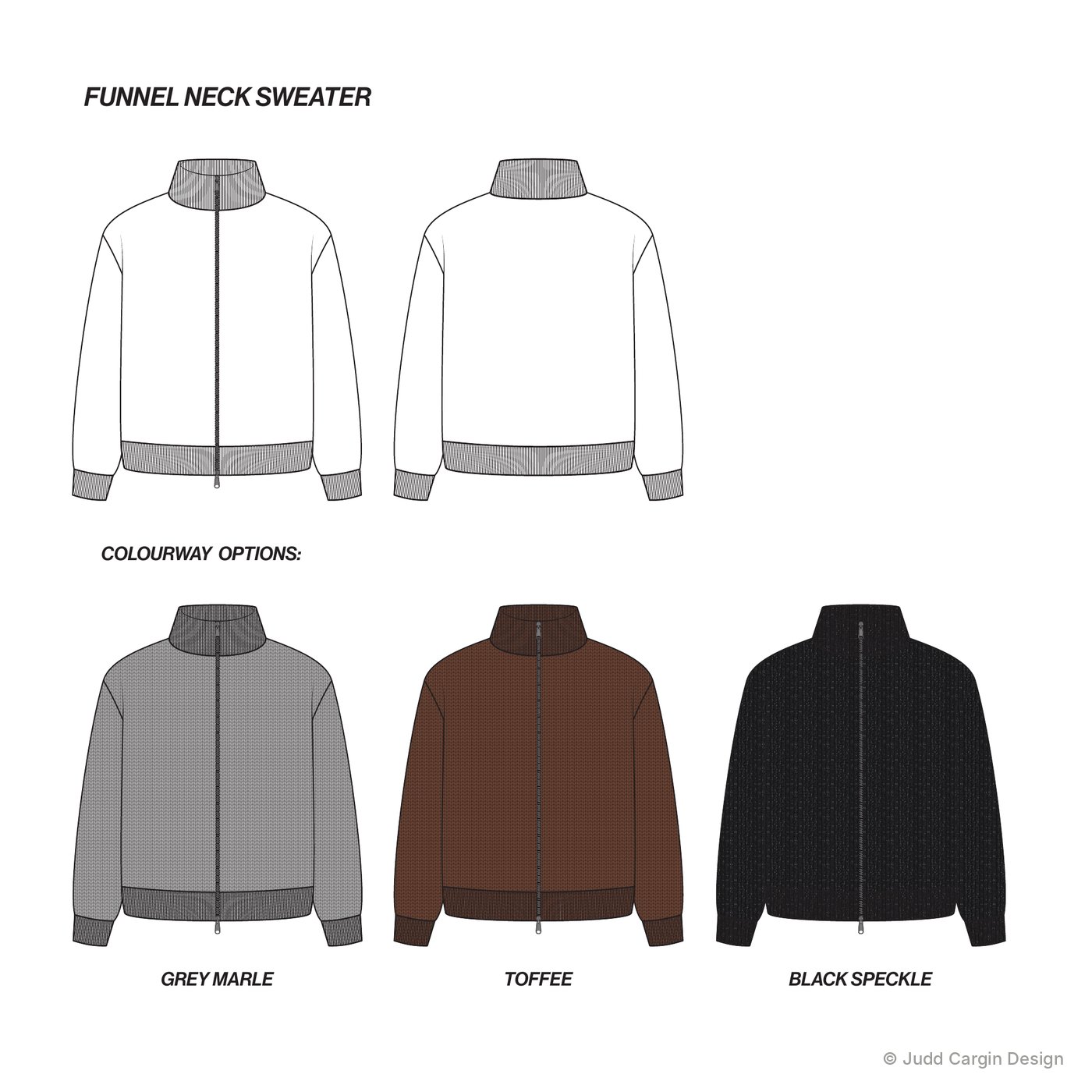

Funnel Neck Sweater technical flats, front and back, with grey marle, toffee and black speckle colourways — Funnel Neck SweaterKnitwear

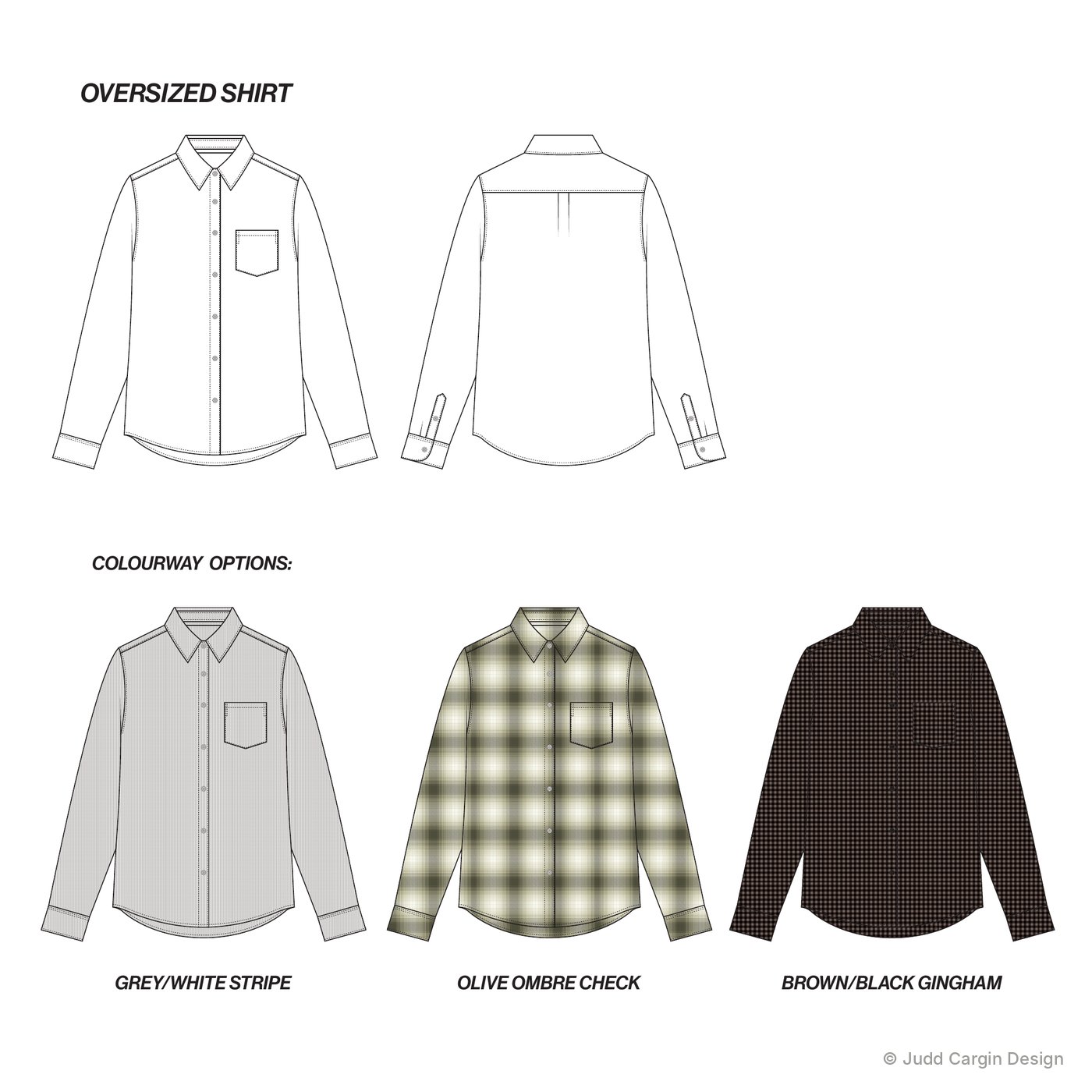

Oversized Shirt technical flats, front and back, with grey/white stripe, olive ombre check and brown/black gingham colourways — Oversized ShirtShirts

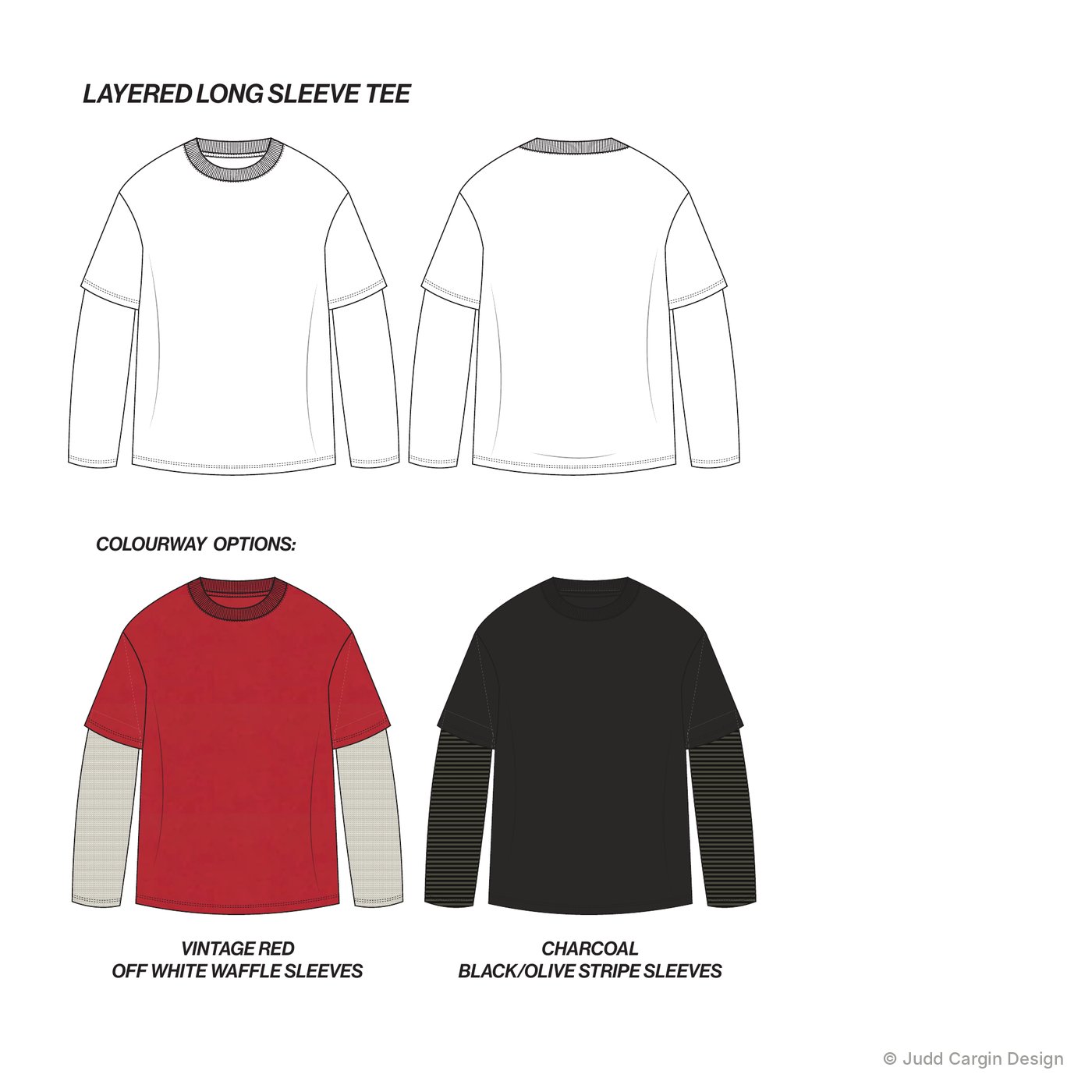

Layered Long Sleeve Tee technical flats, front and back, with vintage red with off-white waffle sleeves, and charcoal with black/olive stripe sleeves colourways — Layered Long Sleeve TeeTees

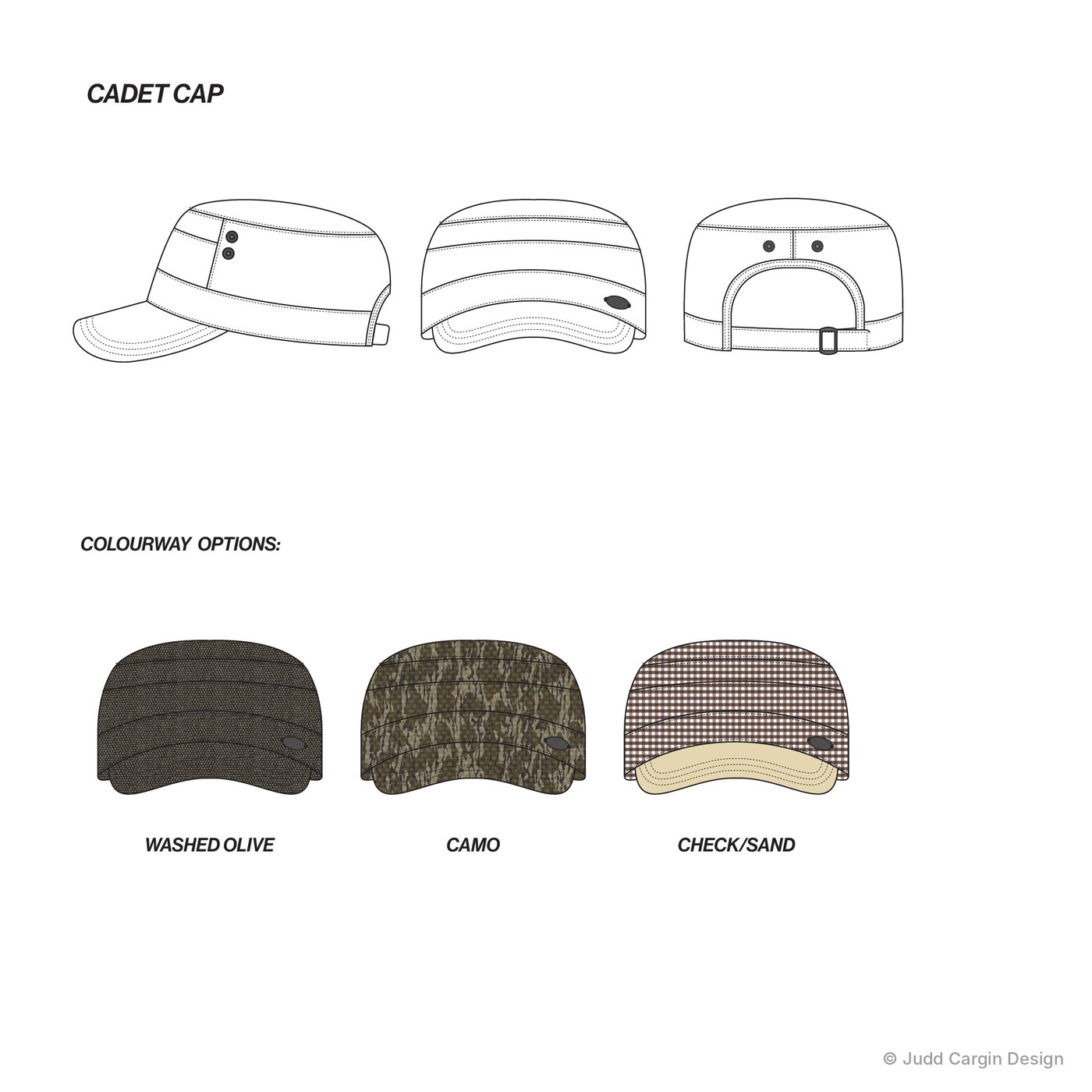

Cadet Cap technical flats, front, side and back, with washed olive, camo and check/sand colourways — Cadet CapHeadwear

Full looks

The styles above, put together as outfits in CAD to show how the range works as a whole, from layering and proportion to colour across a drop.

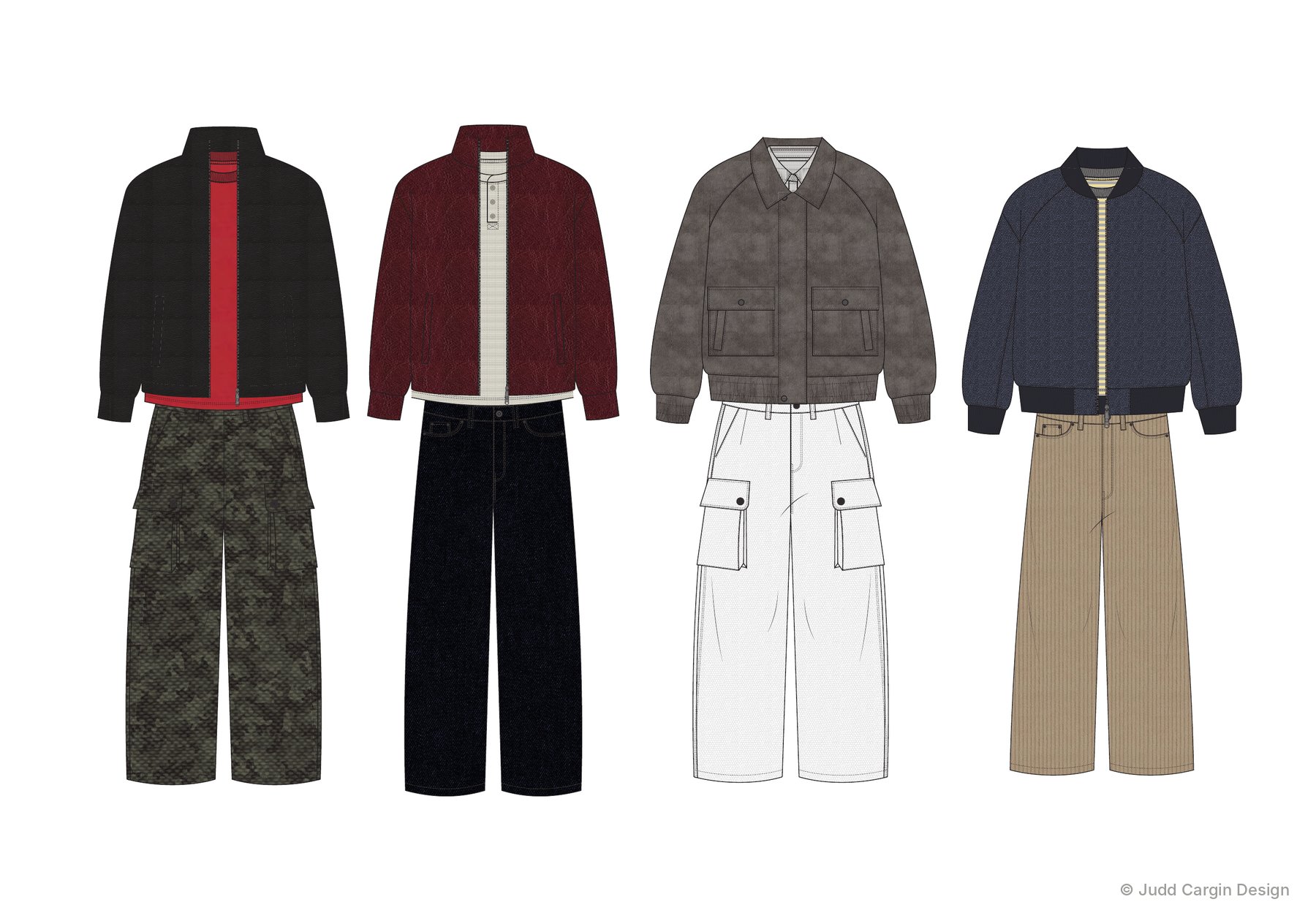

Four styled outfits in CAD: black leather funnel neck jacket with camo cargo pants, burgundy leather funnel neck jacket with raw indigo jeans, vintage brown leather bomber with white cargo pants, and washed indigo bomber with tan pants — Full look 01Styling

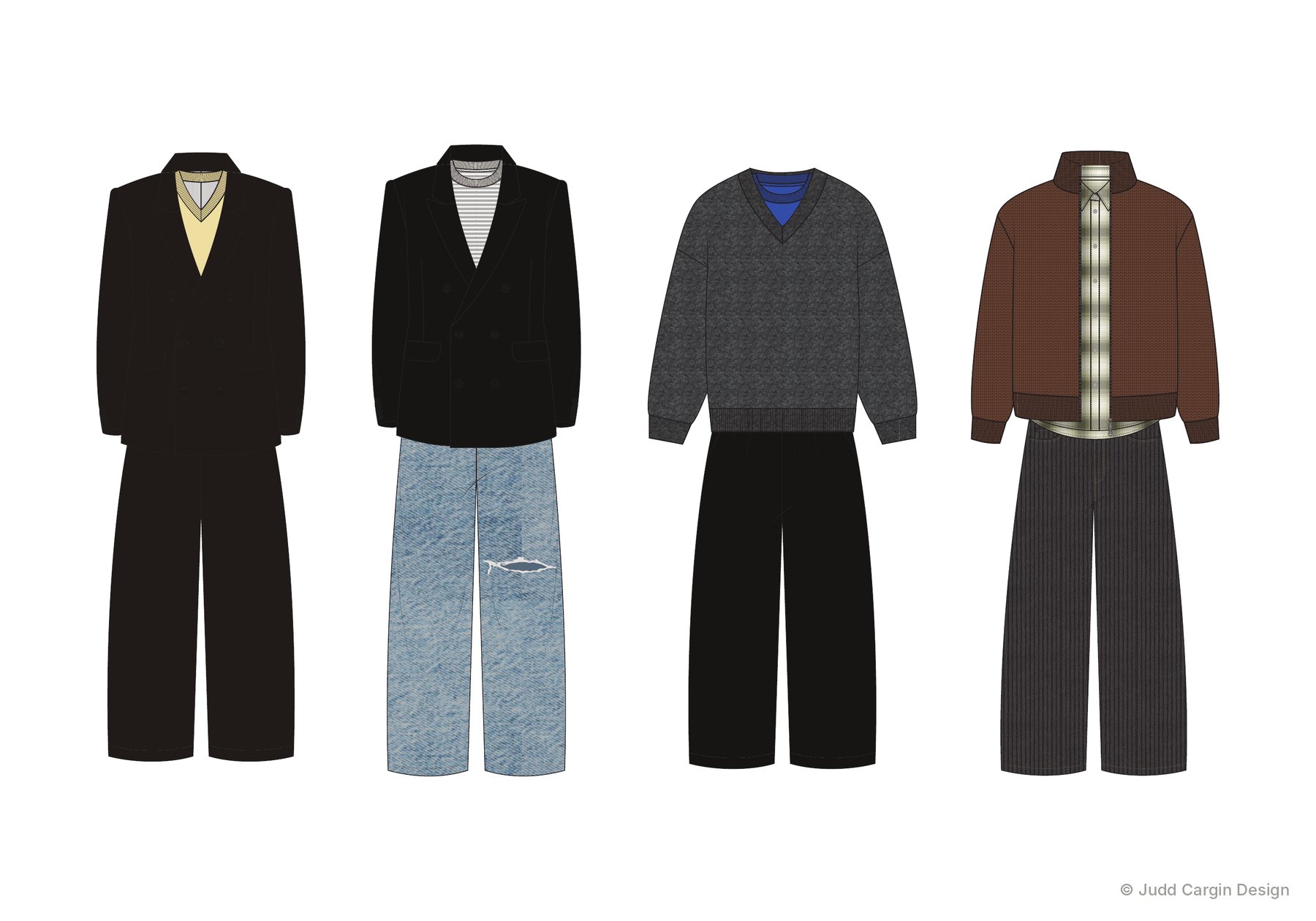

Four styled outfits in CAD: espresso double-breasted blazer over a butter V-neck with matching pants, black blazer over a stripe tee with faded blue jeans, charcoal marle V-neck with black pants, and toffee funnel neck sweater over an ombre check shirt with pinstripe pants — Full look 02Styling
